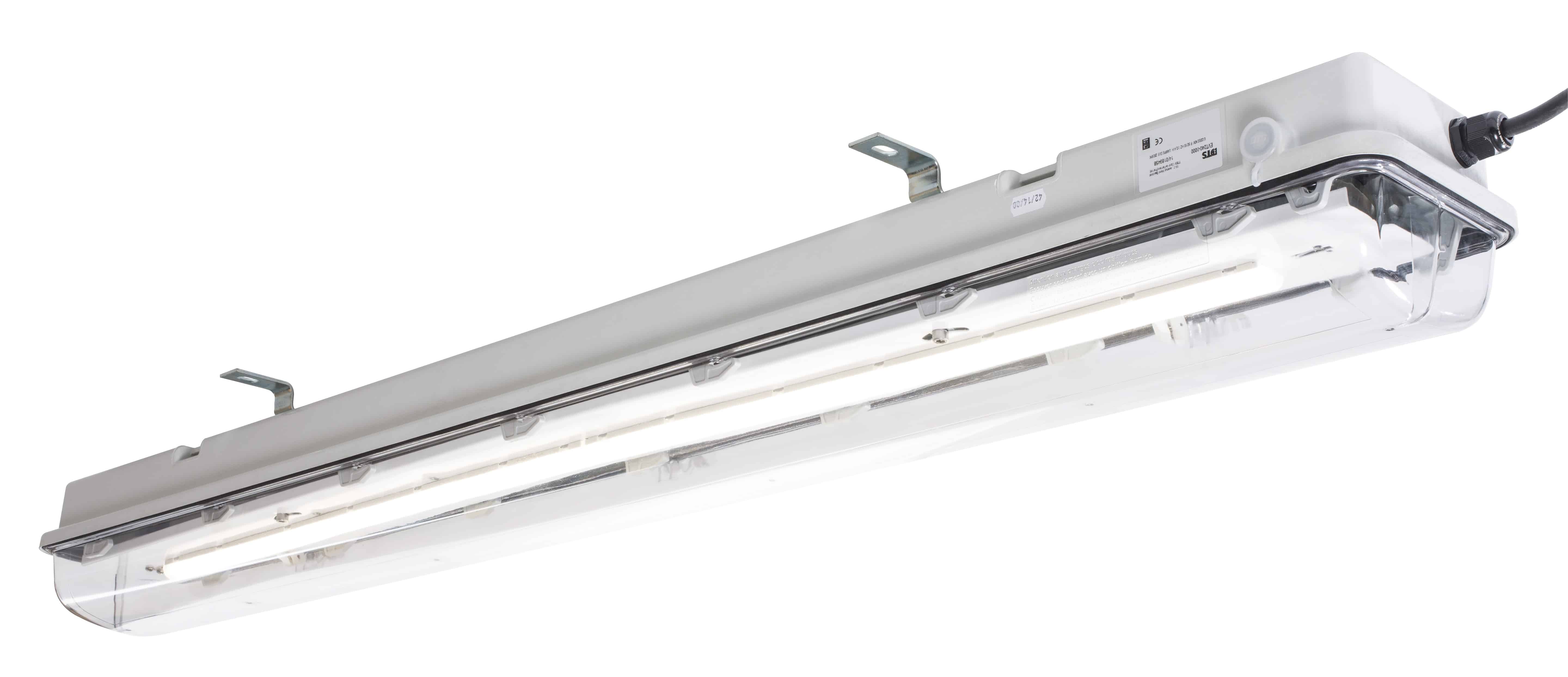

Étanche LED LNVE – Zones 2 & 22

Le Linéaire LED LNVE vous permettra de remplacer vos luminaires étanches traditionnels de 1x18W à 2x58W, et sous contraintes ATEX:

Zones ATEX: 2 et 22
6 Puissances: 12W / 19W / 25W / 31W / 56W / 71W
1 CCT: 4000K
Existe en version secourue avec batterie

Operating life 100,000 h (according items)
High lumen output – 5000 lumens with 100% yield (according items) – LED module diffuser
Double central locking for ingress protection
All components mounted on hinged and removable geartray which gives easy access for maintenance
Including accessories (cable gland, plugs & fixing brackets)
Option : Automatic switch off on opening for safe maintenance


Main body constructed of glass reinforced polyester for high impact strength
UV protected polycarbonate diffuser to resist harsh environments
Rated voltage 100- 254 Vac 50/60Hz
Wiring configuration : 5 wires
3xEntries M20

Certification & standards

Approved to: EN60079-0, 60079-15, 60079-31
EC Type Examination Certificate: under directive 94/9/CE
Ex II 3 G
Ex nR IIC T4 Gc for -40°C to + 60°C
Ex nR IIC T5 Gc for -40°C to + 35°C
Ex II 3 D
Ex tc IIIC T135°C Dc IP66 for -40°C to + 60°C
Ex tc IIIC T100°C Dc IP66 for -40°C to + 35°C

Glow wire: 960°C EN60598-2-22

Safe operating temperature: -20°C to +55°C

IP Test: IP66 according to IEC60529 (2001)

Impact protection index : IK09 according to IEC 62262

Protection IK


Protection IP


Zones ATEX

2, 22


5 ans inconditionnelle
