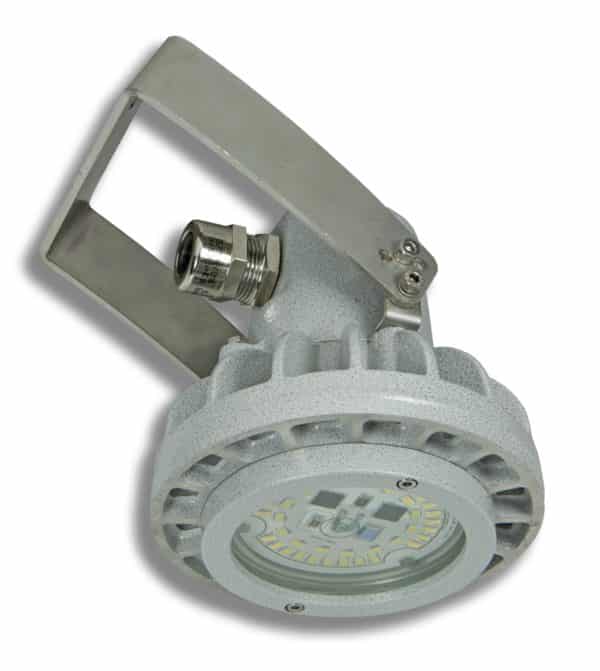

EVML LED ATEX/IECEx – Zones 1/21/2/22 – Highbay / Projecteur

EVML lighting fixtures have been designed to offer a Low Bay lighting fixture that could replace incandescent equivalents with lower costs. They are suitable for the illumination of areas in which it’s necessary to limit the obstruction such as tunnels, passages, corridors, stairways and command and control cabins (code EVML-50). They can also be used to illuminate and monitor hazardous materials contained inside tanks and cisterns thanks to a bracket for the coupling with the porthole flange (code EVML-50/O..). The model with the side entry meets, at last, some specific installation needs, reducing the overall dimensions (code EVML-50L). The EVML series features the ‘Ex e mb’ method of protection: the electronic board and LEDs are protected with silicone of high transparency. The Low Bay LED lighting fixtures has been specifically designed to meet the technical requirements of LEDs. In effect, the body fins act as a heat dissipater for the LED plate meaning that more powerful lighting can be installed without causing any deterioration of the LEDs. The universal steel mounting bracket complies with all application requirements and it allows the directionality of the light and an easy installation at low heights in all those areas defined as dangerous for the presence of explosive gas and dust as Zone 1, 2, 21, 22. The protective flat glass is resistant to impact and high temperatures and ensures nonpolluting illumination to the surrounding environment.

Low copper content aluminium alloy body. Shock resistant tempered glass. Stainless steel bolts and screws. Silicone gaskets. Galvanized steel swiveling supporting bracket. Cable gland REV01IB in nickel-plated brass. Epoxy coating RAL 7035.



Fiche technique

Fabricant

Tension d'alimentation

Zones ATEX
